Datalogging Devices

The CBL 2 system, the second generation of the Calculator-Based Laboratory system, is a portable, handheld, battery-operated data collection device for gathering real-world data. Data collected with a CBL 2 device can be retrieved and analyzed by TI graphing calculators. With the CBL 2 and appropriate sensors, you can measure motion, temperature, light, sound, pH, force and much more. Package Contents: CBL 2 Laboratory Data Collector/Calculator 1 x Temperature Sensor 1 x Voltage Sensor 1 x Light Sensor 1 x Calculator Cradles 1 x Link Cable 1 x Teacher Guide 1 x Resource CD 4 x AA Alkaline Batteries

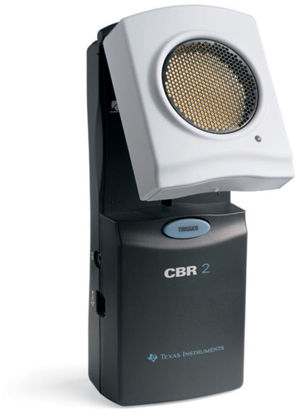

The CBR 2 motion detector connects directly to a Texas Instruments graphing calculator—eliminating the need for an additional data-collection interface. Requirements: TI Handhelds, CBR 2 works with the following TI graphing calculators: USB Port: All models of TI-84 calculators (Plus, Silver Edition, Plus C Silver Edition, and CE) and all models of TI-Nspire and TI-Nspire CAS handhelds (clickpad, touchpad, CX, and CX II) TI Calculator I/O Port: TI-73 Explorer, TI-82, TI-83, TI-83 Plus, TI-83 Plus Silver Edition, TI-84 Plus, TI-84 Plus Silver Edition, TI-84 Plus C Silver Edition, TI-86, TI-89, TI-89 Titanium, TI-92, TI-92 Plus, and TI Voyage 200 calculators Texas Instruments Computer Software CBR 2 works with the following computer software from Texas Instruments (requires a different USB cable): TI-84 SmartView™ Emulator Software (version 5.2* or newer) TI-Nspire™ CX Premium Teacher Software TI-Nspire Student Software * Older versions of the TI SmartView software require a TI Connectivity Cable for data collection with the CBR 2. Data-Collection Interfaces CBR 2 can also connect to an interface for data collection with other sensors. (Requires additional cable) TI Calculator Interfaces: CBL 2, CBL, LabPro, and TI-Nspire Lab Cradle Other Vernier Interfaces: LabQuest®, LabQuest 2, LabQuest Mini, and LabQuest Stream®

When projecting from a standard overhead, the TI-Nspire ViewScreen panel is required for any connected TI-Nspire handheld (with TI-Nspire Keypad or TI-84 Plus Keypad* snapped in) or TI-Nspire CAS handheld. The TI-Nspire ViewScreen panel also has five times the resolution of the ViewScreen panel used for TI graphing calculators.
